Expanded PTFE gasket sheet is made of 100% expanded P.T.F.E. by using special process that produces a uniform and highly fibrillated microstructure with a great lot of fibers running in multidirection. These create a soft and pliable, yet very tough gasket that has excellent resistance of pressing, creep relaxation and cold flow.
Expanded PTFE sheet possesses universal resistance against common chemicals, except melted alkali metal, fluorine at liquid and gas states. It can be stored without any time limits and can seal uneven and damaged flanges
– full chemical resistance like solid sintered PTFE
– resistance against acids and bases of pH 0 to 14
– UV-resistant
– no aging, unlimited shelf life
– nontoxic, biologically inert
– non flammable

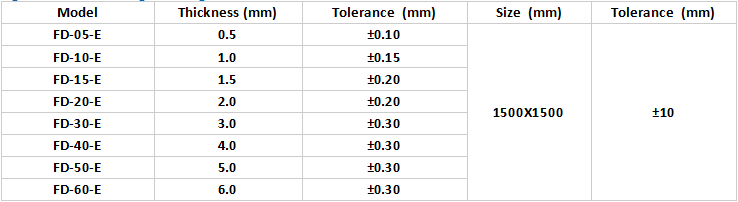

Specification of expanded ptfe sheets
we can develop customized product to meet your specific needs.
Special Features
- best adaptation on uneven surfaces and affected sealing faces
- for sealing of stress sensitive material like glass lined steel, glass, ceramic*
- long lasting gasket solution for extreme aggressive Media
Suitable for use against :-
Acids
Alkalis
Corrosive Fluids
Oils
Solvents
For use in the following industries
Food & Beverage
Pharmaceutical
Chemical
Petrochemical
Distillery
Marine
Power Generation
Paper

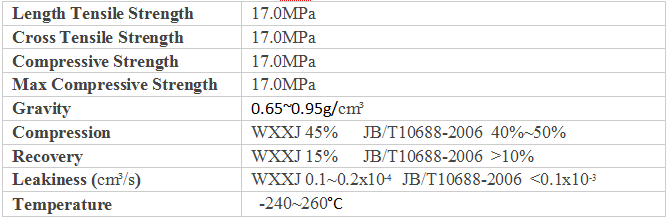

Physical Properties of expanded ptfe sheets
Expanded PTFE Sheet is a high performance sheet gasket material made of multi-directionally expanded virgin PTFE. It is a soft, form-in-place gasket material that conforms to almost any sealing surface. It is capable of withstanding a wide range of pressure, temperature and chemical environments. Due to its highly fibrillated microstructure, it has excellent creep resistance compared with other PTFE products.
Typical Application
> Distilleries, petrochemical, food and beverage, pharmaceutical, general chemical, power generation, iron and steel manufacturing, pulp and paper, etc.
